Outdoor 3G/4G Card Payphone

PHONE-700LR (support RFID card)
PHONE-700LC (support IC card)

About this Product

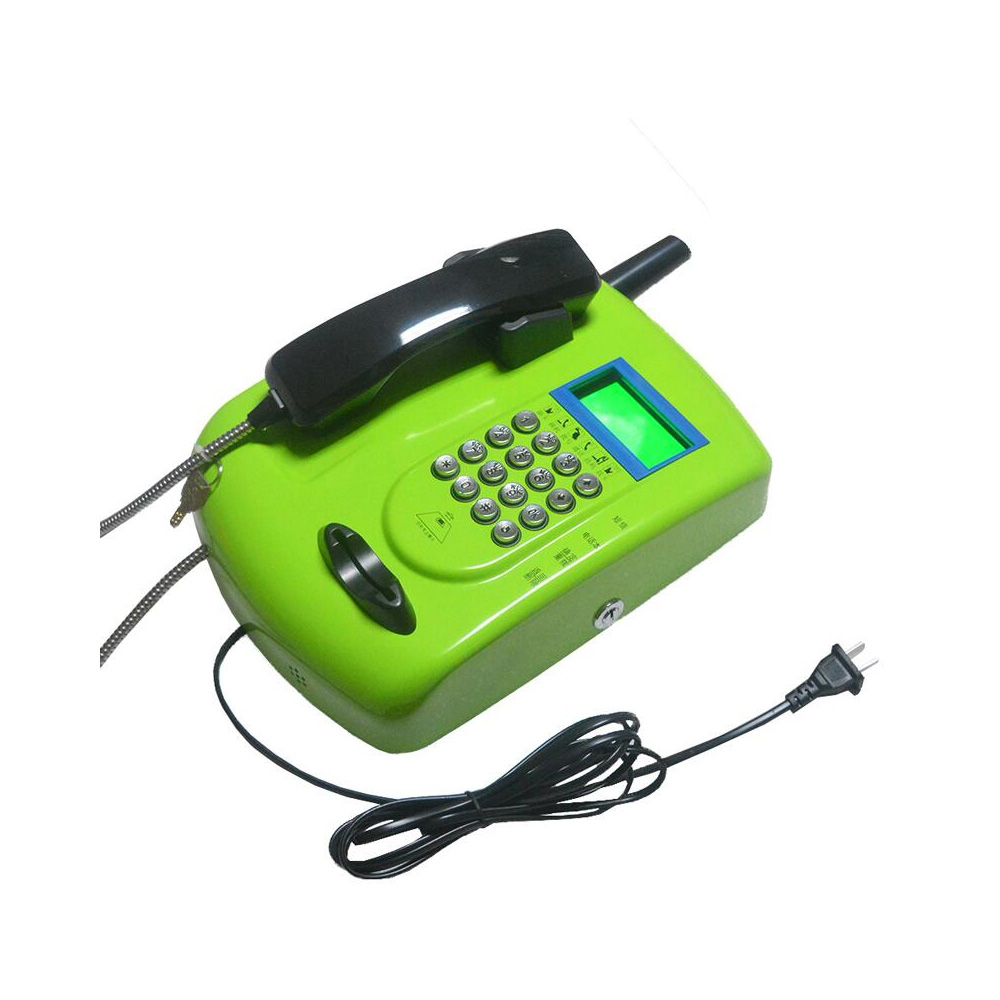

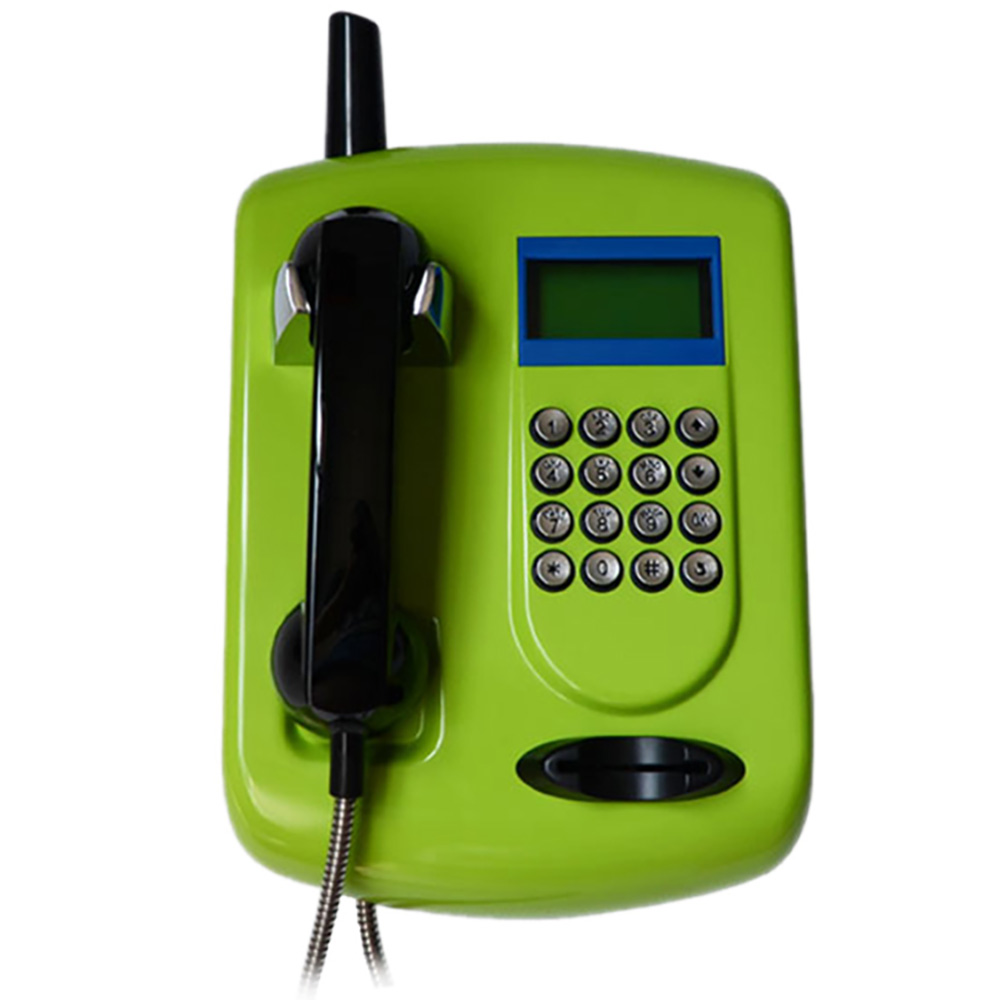

This is an outdoor wall-mounted payphone supporting payment with IC cards (SLE4442 card) or RFID cards (Mifare card), by inserting a 3G/4G SIM card inside. Designed with a metal casing and anti-vandalism parts for high performance, it is applicable for airports, scenic spots, streets, schools, factories and armies, jails, etc.

The Payphone is plug-&-play and easy to install. And the operator can define the call rate and check revenue records via the web-based NMS platform.

Basic Functions & Features

  • Support making calls via IC cards or RFID cards.
  • Function keys for follow-on calls and language selection.
  • Complete visual prompts and tones offer a friendly operation instruction.
  • Modular design and appropriate layout for convenient maintenance.
  • Robust casing and superior sealing give high resistance to dust, water, corroding and vandalism.
  • Self-diagnosis and fault prompt.
  • Configurable call rate.
  • Offer web-based Network Management System (NMS) to manage 100,000 sets of Payphone and provide exportable statistics reports.


Suited for outdoor or unsupervised environment (e.g. parks, streets, resorts, schools, jails).


  • Supported Network/Technology

    • LTE FDD: B1/B3/B5/B8 (2100/1800/850/900 MHz)
    • LTE TDD: B38/B39/B40/B41 (2600/1900/2300/2500 MHz)
    • TDSCDMA: B34/B39 (2100/1900 MHz)
    • WCDMA: B1/B8 (2100/900MHz)
    • CDMA 1xEVDO: BC0 (800MHz)
    • GSM: B3/B8 (900/1800 MHz)
  • Power Requirement

    • External adaptor (input: 100~240 VAC, 50/60 Hz / output: 12VDC, 1A)
    • Power consumption: 6 watts
    • Support solar power supply
  • Compatible Card

    • SLE4442 chip card or Mifare RFID card
  • Remote Management via NMS (optional)

    • Setting of call tariff rates
    • Revenue records of each payphone
    • Supervision on running status of each payphone
    • Generate top-up voucher code to add balance on cards
  • Environmental Conditions

    • Temperature: -10°C to 60°C (operation)
    • Humidity: 10% ~ 95% non-condensing
    • Noise: ≤ 60 dB (A)
    • Atmosphere Pressure: 86 ~ 106 kPa
  • Structural

    • Housing Material: Power-coated steel (SECC)
    • Antenna: 1x 3G/4G (screw mount on casing)
    • 1x 3G/4G SIM card slot
    • LCD: 4-line, 128X64 pixels, backlight supported, shock resistance ≥ 4,000N
    • Pull Resistance of Handset Cord: Not less than 150 kg
    • Lifespan of Metallic Keypad: > 1,000,000 operations
    • Lifespan of Hook Switch: > 500,000 operations
    • Dimensions: 300 mm x 250 mm x 130 mm (not including antenna)
    • Weight: 6.1 kg
    • Packing Dimensions: 450mm X 320mm x 190mm
    • Packing Weight: 6.9kg
