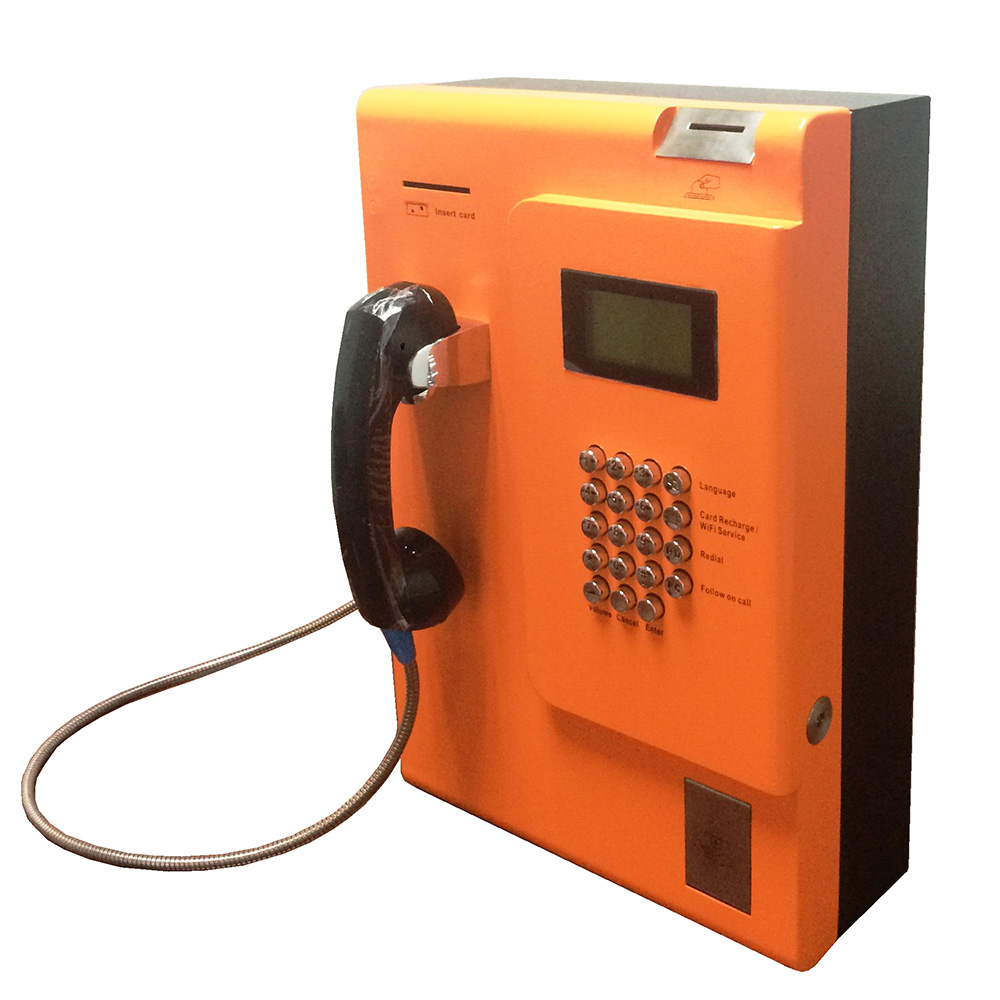

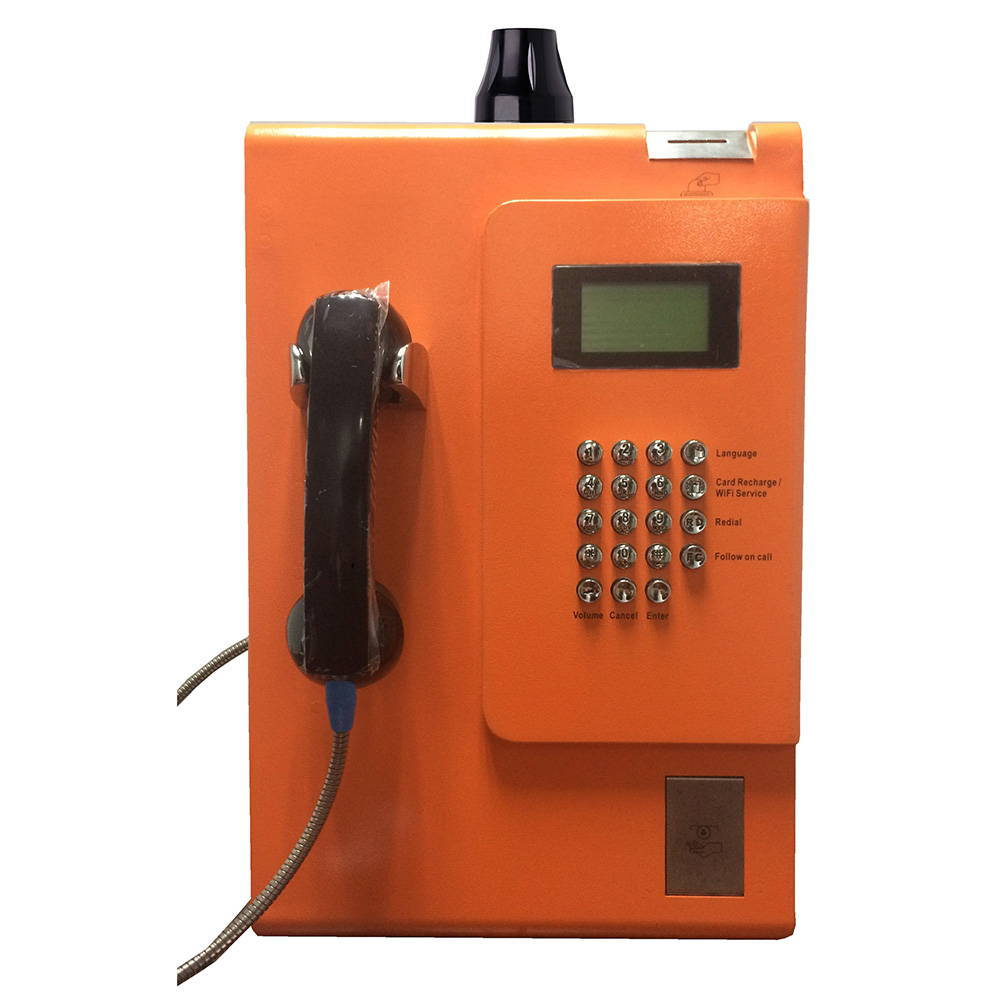

Outdoor 3G/4G/VoIP Coin Payphone

Model:
PHONE-A500V (calling through VoIP network)
WIFI-A500V (calling through VoIP network, support WiFi vending feature)
PHONE-A500L (calling through 3G/4G network)
WIFI-A500L (calling through 3G/4G network, support WiFi vending feature)

About this Product

The Outdoor Coin Payphone is a good choice to provide convenient communication in outdoor environments e.g. streets, parks, resorts, bus/train stations. It can also provide services of WiFi hotspot, by connecting with xDSL/cable/fiber optic modem or 4G network (optional backup connection).

The Payphone is plug-&-play and easy to install. And the operator can define the call rate and check revenue records via the cloud-based NMS.

By inserting coins into the Payphone, the end user can directly make calls via 3G/4G/VoIP, or optionally enter a special registration code on the Payphone to get WiFi Internet service. When the paid time elapses, Internet access is automatically disconnected.

FUNCTIONS

  • Capable to make calls via valid coins.
  • Free calls are configurable to make without payment.
  • Provided with function keys for follow-on calls and shift of languages.
  • Dynamical display of duration and charge during a call.
  • Complete visual prompts offer a friendly operation instruction.
  • Allowed or banned dialing numbers can be set.
  • Provide big WiFi signal range (around 100 meters for outdoor / 30 meters for indoor) (only for model WIFI-A500V and WIFI-A500L).
  • Support account roaming between different payphones to help end users enjoy your WiFi service in multiple sites (only for model WIFI-A500V and WIFI-A500L).
  • Provide mobile phone airtime top-up service (optional, only for model WIFI-A500V and WIFI-A500L).
  • Modular structure makes maintenance easy.
  • Robust casing and superior sealing give high resistance to dust, water, corroding and vandalism.
  • Professional coin passage design to prevent coin stolen or fraud.
  • Excellent coin-learning ability to recognize fake coins and easily accept newly-issued coins without changing both hardware and software.
  • Self-locking coin box equipped with sensors to detect box stolen and an indicator to identify if the box is opened before.
  • Offer cloud-based NMS (Network Management System) to manage 100,000 sets of Payphone and provide exportable statistics reports.

BENEFITS OF WIFI HOTSPOT SERVICE

  • Venue owners can get extra revenue by providing WiFi hotspot service and attract more visitors which is good for his original business;
  • Venue owners can display advertisements for their products on the login page for better promotion, or show ads for other shops to get income;
  • No WiFi squatter or hacker to stole Internet because no username and password is required.
  • Travelers can get quick and cheap Internet access without paying expensive charge for data roaming or new SIM card;
  • Visitors can check/send email, browse websites, and watch videos from any WiFi-enabled smart mobile phone, tablet, laptop, or handheld device.

APPLICATIONS

Suited for outdoor public environment, such as:

  • Streets, parks, resorts, plazas;
  • Bus/train stations;
  • Beaches, swimming pools, golf courses.

SPECIFICATIONS

  • VoIP

    • Supported Protocols: ITU-H.323 V4 and IETF SIP V2
    • Line Echo Cancellation: Supported
    • Speech Quality: Ensured by QoS at the Ethernet and IP layers and comprehensive jitter buffer

  • Remote Management via NMS (optional)

    • Setting of call tariff rates
    • Revenue records of each payphone
    • Supervision on running status of each payphone

  • Supported 3G/4G Network/Technology

    • Supported Protocols: ITU-H.323 V4 and IETF SIP V2
    • LTE FDD: B1/B3/B5/B8 (2100/1800/850/900 MHz)
    • LTE TDD: B38/B39/B40/B41 (2600/1900/2300/2500 MHz)
    • TDSCDMA: B34/B39 (2100/1900 MHz)
    • WCDMA: B1/B8 (2100/900MHz)
    • CDMA 1xEVDO: BC0 (800MHz)
    • GSM: B3/B8 (900/1800 MHz)

  • WiFi Hotspot (only for model WIFI-A500V and WIFI-A500L)

    • WiFi Operation Range: Radius up to 100 meters (outdoor) / 50 meters (indoor)
    • WiFi Frequency Range: BAND 2.402 GHz to 2.480 GHz (and 5.150 to 5.875 GHz, optional)
    • Networking: IEEE 802.11 b/g/n Wireless LAN
    • Zero end-user configurations
    • Built-in user authentication and accounting

  • Power Requirement

    • External adaptor (input: 100~240 VAC, 50/60 Hz / output: 12VDC, 1A)
    • Power consumption: 6 watts
    • Support solar power supply

  • Environmental Conditions

    • Temperature: 5°C to 45°C (operation) / -10°C to 60°C (storage)
    • Humidity: 10% ~ 85% non-condensing
    • Noise: ≤ 60 dB (A)
    • Atmosphere Pressure: 86 ~ 106 kPa

  • About Coins

    • Coin Acceptance: 15 different types
    • Usable Coins: Diameter: 16mm ~ 31mm, Thickness: 1.2mm ~ 3.2mm
    • Coin Box Capacity: 2 liters

  • Structural

    • Housing Material: Zinc-plated steel (SECC)
    • WAN Interface: 1x RJ45 port or built-in 4G module (optional)
    • Antenna: 1x 3G/4G (screw mount on casing)
    • 3G/4G SIM card slot: 1 for model PHONE-A500L or 2 for model WIFI-A500L
    • LCD: 4-line, 128X64 pixels, backlight supported, shock resistance ≥ 4,000N
    • Pull Resistance of Handset Cord: Not less than 150 kg
    • Lifespan of Metallic Keypad: > 1,000,000 operation
    • Lifespan of Hook Switch: > 500,000 operations
    • Dimensions: 452 mm x 290 mm x 125 mm (not including antenna)
    • Weight: 11.6 kg
    • Packing Dimensions: 600mm X 400mm x 210mm
    • Packing Weight: 14 kg

FAQ

What do I need to prepare for the installation of Outdoor Coin Payphone?

For VoIP Payphone: 1) VoIP account acquired from a SIP service provider for each payphone, 2) broadband Internet connection, 3) AC power supply.

For 3G/4G Payphone: 1) 3G/4G SIM card (2 cards will be required if WiFi Internet service will be provided by 4G network), 2) AC power supply.

How many user’s device can use the WiFi Internet service of Outdoor Coin Payphone at the same time?

Usually we suggest 20 to 30 users connected to the Payphone at the same time, because more users will lower the average data speed and affect end user's experience.

What is the best bandwidth of Internet access shall I prepare for the WiFi Internet service of Outdoor Coin Payphone?

We suggest the bandwidth of Internet connection is 4 to 20 Mbps per unit for optimal use.

Can I change the tariff rate of payphone, SSID and WiFi service price, and check the revenue records?

If you need to change these settings by yourself, please contact our sales to purchase the NMS (network management system) license.

What is the WiFi signal range of Outdoor Coin Payphone? How can I extend the range?

It’s around 100 meters (outdoor) / 50 meters (indoor) and will vary with actual installation environment. You can connect one or more units of access point (AP) to extend its range.
